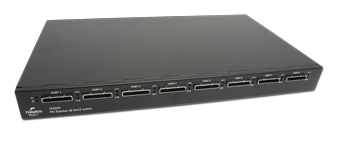

IXS600 Gen3 Switch
Gen3 PCI Express Switch
Dolphin’s IXS600 High Speed PCI Express switch delivers with a powerful and flexible PCI Express solution. This Gen3 PCI Express switch supports I/O expansion and high throughput clustering by combining Gen3 x8 PCI Express speeds of 64Gbps with Dolphin’s clustering technology and IDT’s standard transparent bridging capabilities.
- Gen3 8 GT/s per lane
- Gen1 and Gen2 compliant
- iPass Connectors
- Eight PCI Express Gen3 x8 ports
- NTB Hot Plug cabling support
- 19 Inch 1U rackmountable
- Redundant Fans
- Front and rear status LEDs
- 64 GT/s total per ports
- Ethernet management
Product Data
IX End-Of-Life ( EOL ) notification.
IXS600 features gives users the ability to scale applications by connecting multiple cabled PCI Express devices in transparent mode or to cluster high speed processing solutions. As a key component of Dolphin’s PCI Express product family, the IXS600 provides the scalability for all types of cluster computing and I/O expansion applications.
The IXS600 is a switching component in Dolphin's PCI Express product family. This 8 port 1U cluster switch delivers 64 Gbps of non-blocking bandwidth per port at ultra low latency. Each connection is fully compliant with PCI Express Gen1, Gen2 and Gen3 I/O specifications. The switch utilize standard iPass™ x8 copper cables.
For Non Transparent Bridging (NTB) operations, the IXS600 is combined with Dolphin’s iPass based Host Adapters and XMC Adapters. Operating in NTB mode, Dolphin has solved the strict power on requirements normally associated with PCI Express. Hosts, cables, and the switch can be hot-swapped and power cycled in any order, providing real plug and play as normally expected from networking components.
The IXS600 supports Dolphin’s extensive PCI Express Software libraries to create a powerful and reliable communication solution for applications that benefit from an ultra-low latency, high performance cluster interconnect. Dolphin’s PCI Express Software enables standard and embedded Linux, Windows, RTX and VxWorks network applications to benefit from PCI Express performance without modification. This comprehensive solution is ideal for real-time, technical and high performance computing, cloud computing, and enterprise business applications.
| Feature | Description |
|---|---|
| Link Speed | 64 GT/s per x8 port |
| Application Performance | 7.2 Gbytes/s application data rate 200ns port latency |
| Active Components | IDT® PCI Express Gen3 Switch |
| PCI Express | Base Specification 3 |
| Ports | 8 - x8 iPass non-blocking 64Gbps ports |
| Cable Connections | To adapter cards, up to 5 meters at Gen2 speed and up to 3 meters at Gen3 speed. Between IXS600 switches, up to 2 meters at Gen3 speed. |
| Power Consumption | Auto-sensing power supply 110-240V AC 50-60Hz Power consumption max 80 Watts |
| Management | Rj45 and USB management ports Operational status and alert LEDs |
| Mechanical Dimensions | 1U, 19 inch rack mountable chassis 440mm(W) x 300mm(D) x 45mm(H) Redundant Fans |
| Operating Environment | Operating Temperature: 0°C - 55°C Relative Humidity: 5% - 95% (non- condensing) |
| Storage Environment | Storage Temperature: -25°C - 70°C Relative Humidity: 10% - 95% (non- condensing) |
| Software | SuperSockets™ Berkley Sockets API Microsoft WinSock2/LSP support SISCI API TCP/IP Driver |
| Regulatory | CE Mark FCC Class A RoHS |
| Safety | IEC 60950-1:2005 (Second Edition), Am 1: 2009 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 A CB test certificate is available upon request. |
| EMC | EN 55022 (2010) EN 55024 (1998) + A1 (2001) + A2 (2003) EN 61000-6-2 (2005) |
| Operating System | Windows Linux VxWorks RTX |
